HEINZMANN Australia

Optimal control technology for steam turbines

Heinzmann Australia Pty Ltd manufactures the exceptional range of Si-TEC controllers for steam turbine applications since 1992. The Si-TEC range of controllers integrate seamlessly into the majority of mechanical drive and generator drive steam turbine applications. As technology has evolved, several new generations of turbine governors and generator controls have been introduced. With more than 4000 Si-TEC systems now in operation globally, the Si-TEC control provides a further enhancement of this already successful product range.

Coupled with the sale of Si-TEC products, HEINZMANN Australia offers professional engineering and commissioning services, delivering excellence in customer support from project concept through to practical completion.

Leaflet Steam Turbine Controls

loading...

Overview

Si-TEC BDG

Si-TEC ADG-T

Si-TEC ADG-TT

Si-TEC Range of Steam Turbine Governors

The Si-TEC BDG and Si-TEC Xtend ADG are steam turbine controls, specifically designed for mechanical drive applications (i.e. pumps, fans, shredders, mills, etc.). These controllers offer optimum steam turbine performance during transient and steady state conditions, utilising their wide range of control speed PID’s.

The Si-TEC BDG (Basic Digital Governor) design is based on the very successful Si-TEC Xtend ADG Advanced Digital Governor. The compact design, user friendly interface, onboard data logging and wide range of PIDs makes the BDG a standard choice for steam turbine control solutions. ADG is utilised for constant and variable speed “single drive“ application, and for “dual drive“ (tandem) load sharing applications.

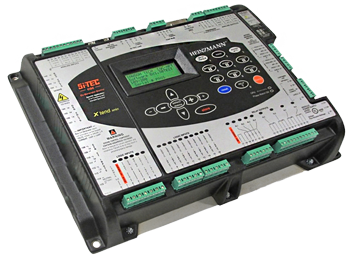

  HZM AUS Advanced Digital Governor ADGHZM AUS Advanced Digital Governor ADG

Si-TEC BDG

The Si-TEC BDG (Basic Digital Governor) is a steam turbine control specially designed for mechanical drive applications (i.e. pumps, fans, shredders, mills, etc.). The BDG design is based on the very successful Si-TEC Xtend ADG steam turbine controller. The compact design, user friendly interface, onboard data logging and wide range of PIDs makes the BDG a standard choice for steam turbine control solutions.

Product Video

thumb LpIeb7EMB9I



More information

I/O Overview

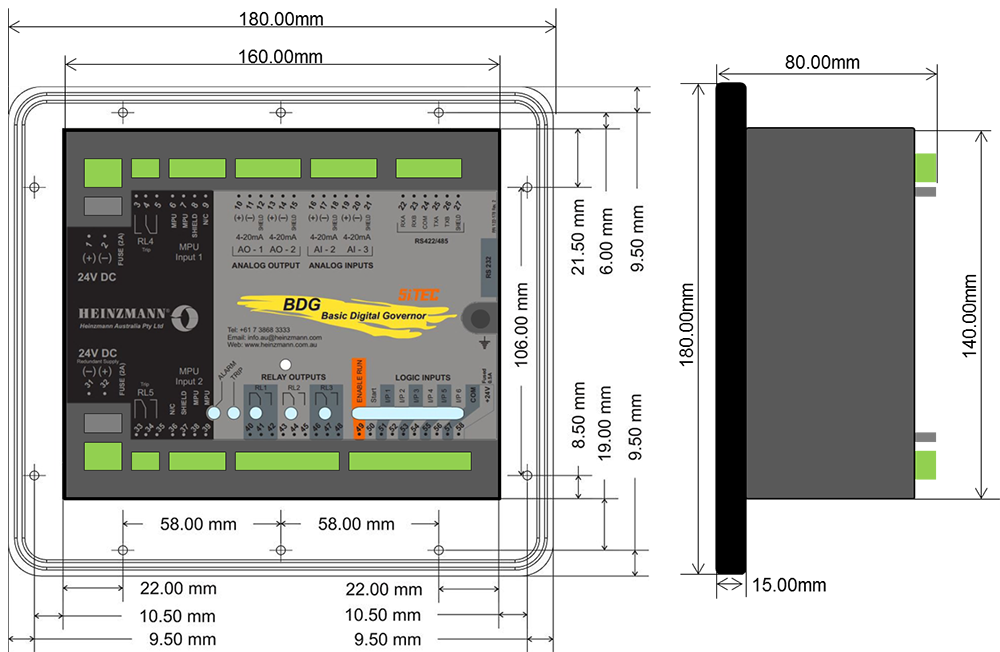

Technical Drawing

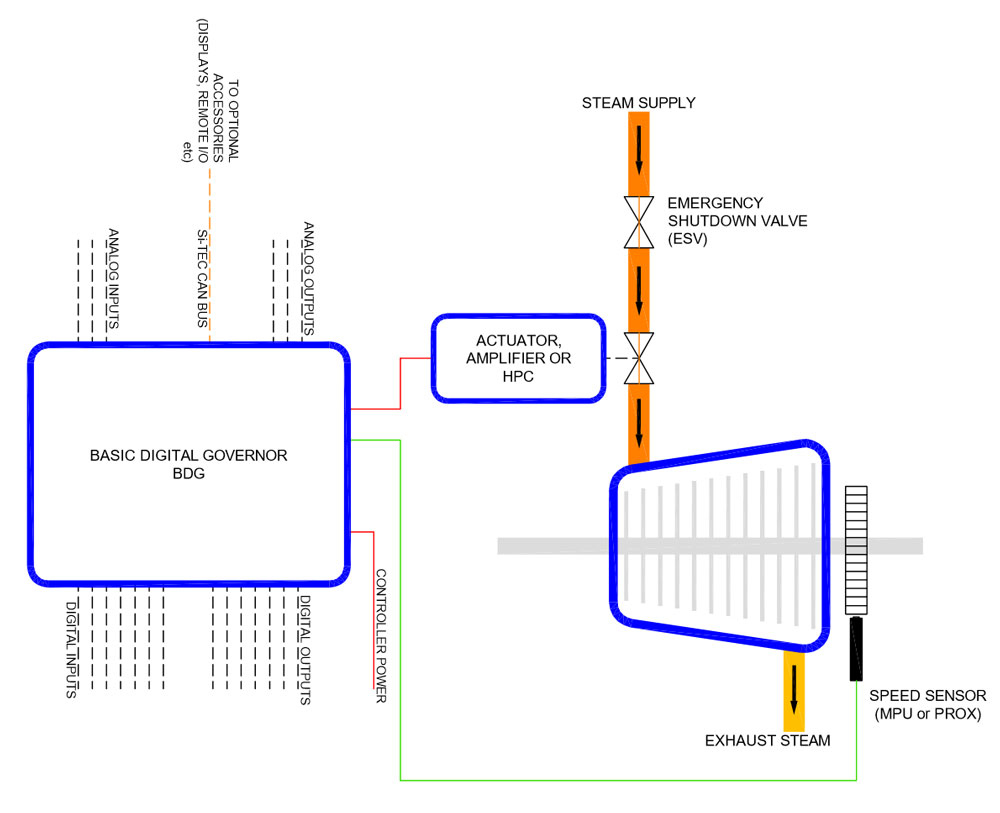

System Overview

Data Sheet

  • Precise speed governing
  • Dual redundant speed sensors with open circuit detection
  • Automatic turbine start sequence
  • Wide range of PIDs
  • Process control (for variable speed applications)
  • Control functions via front keypad, start/stop, sequence hold, hot start, etc.
  • Actuator output linearisation curve
  • Flexible configuration
  • User-friendly tuning software (pcTune)
  • SD card for system diagnostics and logging
  • Dual dynamic logging
  • Optional I/O expansion
  • Certified for hazardous locations

Applications

Petro-chemical
Sugar Mills
Oil and Gas
Power Plants
Pumps
Fans
Shredders
Mills
Compressors

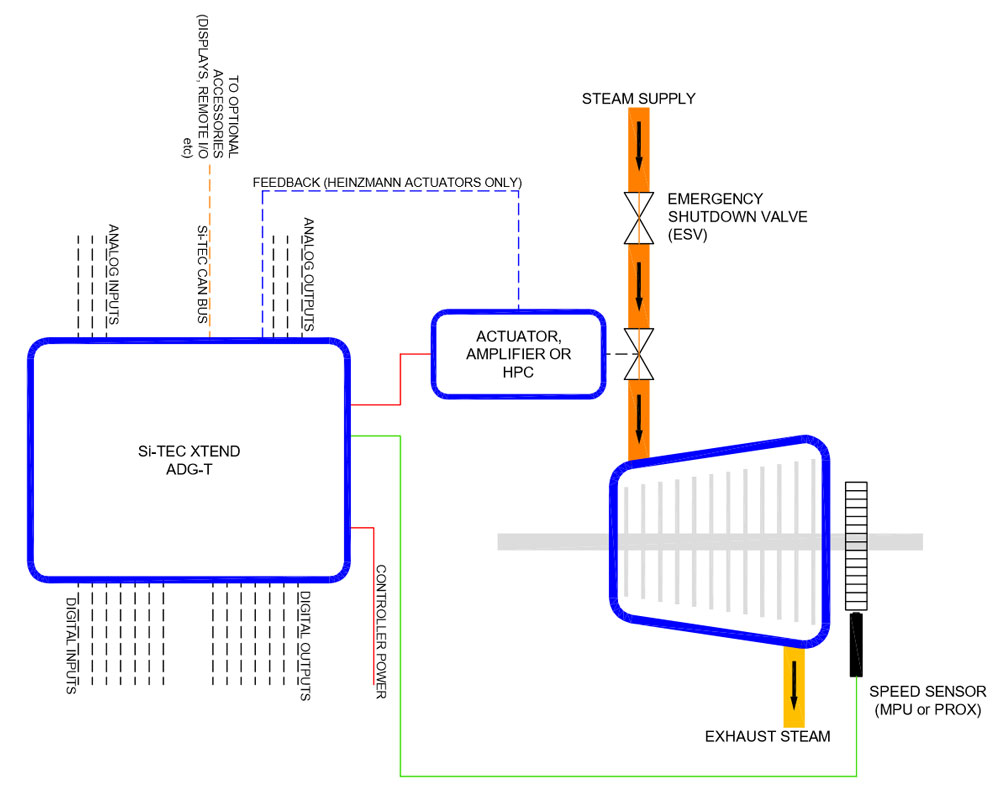

Si-TEC ADG-T

The Si-TEC ADG (Advanced Digital Governor) is a steam turbine control designed for mechanical drive applications (i.e. pumps, compressors, fans, shredders, etc.). Originally developed in 1991 it has since then proven to be the ultimate in steam turbine governing control, with its many features and wide range of speed PID’s the Si-TEC ADG has become the standard choice for many steam turbine operators.
ADG-T is utilised for constant and variable speed “single drive“ application.

  • Precise speed governing typically within 0.1 % of operating speed at steady state
  • Dual MPU (or prox.) speed sensors for redundancy
  • Auto run up and warm through interpolating multiple speed PIDs
  • Process control
  • Variable speed governing control referenced from internal or external set points
  • Constant speed governing control referenced from internal set points
  • Controlled test of overspeed protection
  • Extensive alarm functions
  • On-board diagnostic
  • Dedicated communications port for customer PLC/DCS interface
  • Compatible with all Si-TEC support PC software

Applications

Petro-chemical
Sugar Mills
Oil and Gas
Power Plant
Pumps
Fans
Shredders
Mills
Compressors

Si-TEC ADG-TT

The Si-TEC ADG (Advanced Digital Governor) is a steam turbine control designed for mechanical drive applications (i.e. pumps, compressors, fans, shredders, etc.). Originally developed in 1991 it has since then proven to be the ultimate in steam turbine governing control, with its many features and wide range of speed PID’s the Si-TEC ADG has become the standard choice for many steam turbine operators.
ADG-TT is utilised for constant and variable speed “dual drive“ (tandem) load sharing applications.

  • Precise speed governing typically within 0.1 % of operating speed at steady state
  • Dual MPU (or prox.) speed sensors for redundancy
  • Auto run up and warm through
  • Interpolating multiple speed PIDs
  • Process control
  • Variable speed governing control referenced from internal or external set points
  • Constant speed governing control referenced from internal set points
  • Multiple Turbines driving a common shaft (tandem)
  • Controlled test of overspeed protection
  • Extensive alarm functions
  • On-board diagnostic
  • Dedicated communications port for customer PLC/DCS interface
  • Compatible with all Si-TEC support PC software

Applications

Petro-chemical
Sugar Mills
Oil and Gas
Power Plants
Pumps
Fans
Shredders
Mills
Compressors
