Diesel / Gas Generator Display

Remote display for the Si-TEC Xtend control range (via CAN bus interface) metering of essential engine and generator parameters that include generator voltage, frequency, real power, power factor (lead & lag) and also includes an independent turbine overspeed protection circuit.

Leaflet Genset Controls

loading...

ONYX

Opal II

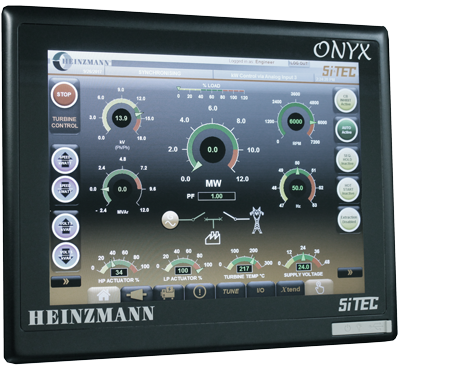

ONYX Diesel/Gas Generator Display

ONYX works as a remote display of Si-TEC Xtend TGC and CGC. It is used for engine generators, diesel engine generators or gas engine generators.

More information

I/O Overview

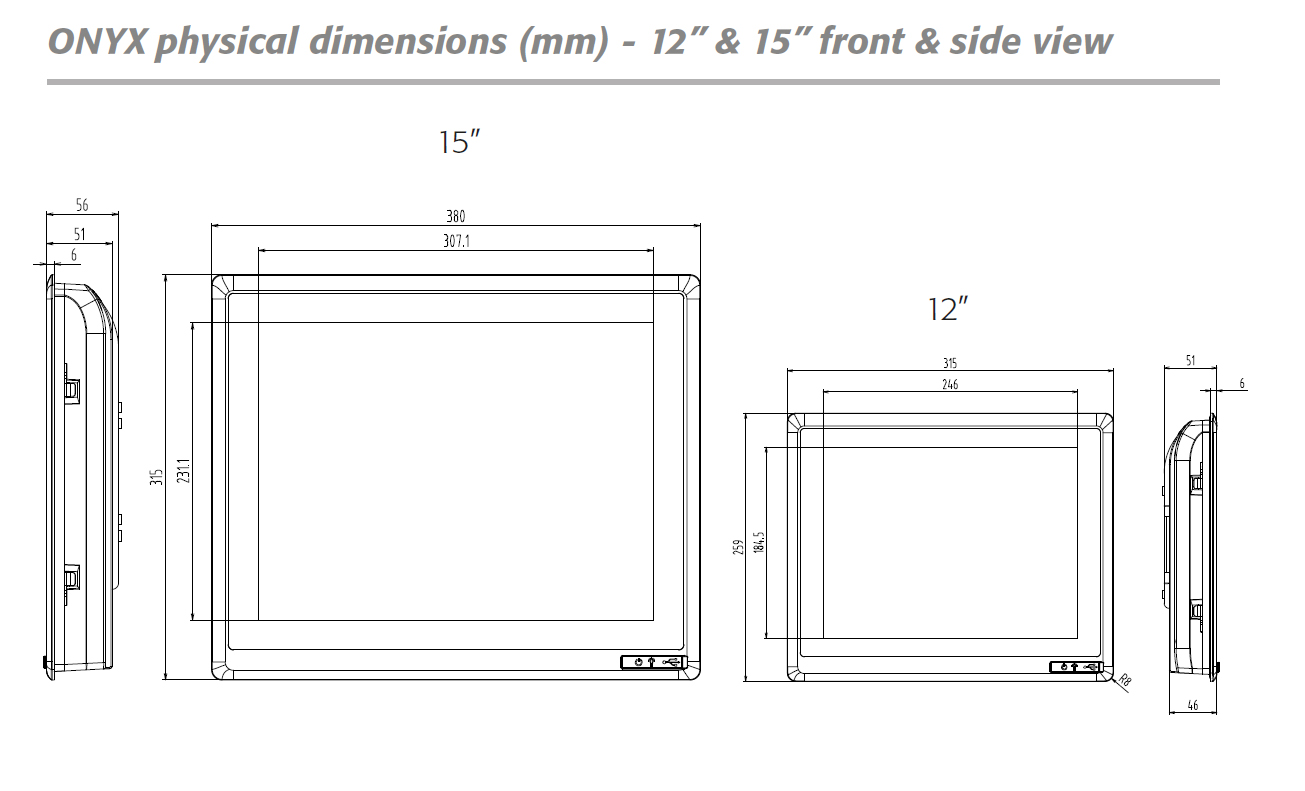

Technical Drawing

System Overview

Data Sheet

  • 12“ or 15“ flat “capacitive” touch screen
  • Genset operation and configuration password protected
  • Clear and precise visual representation of all genset parameters
  • Real-time information from Si-TEC Xtend controller updated instantly to ONYX display
  • No requirement for external logic switches reducing wiring interface
  • Genset monitoring (including oil pressure, oil temperature, water temperature, etc.)
  • Range of alarm functions logic status and event log
  • Easy navigation of all information pages and genset control functions

Applications

Mining
Oil & Gas
Standby Power Systems
Hospitals
Utility Generation

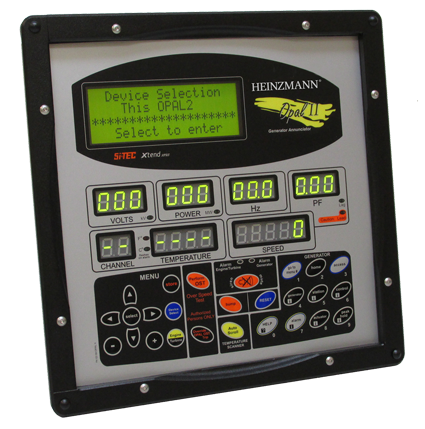

Opal II Diesel/Gas Generator Display

Opal II is a remote display for Si-TEC Xtend turbine controls (via CAN bus) and used for diesel or gas engine generators.

More information

I/O Overview

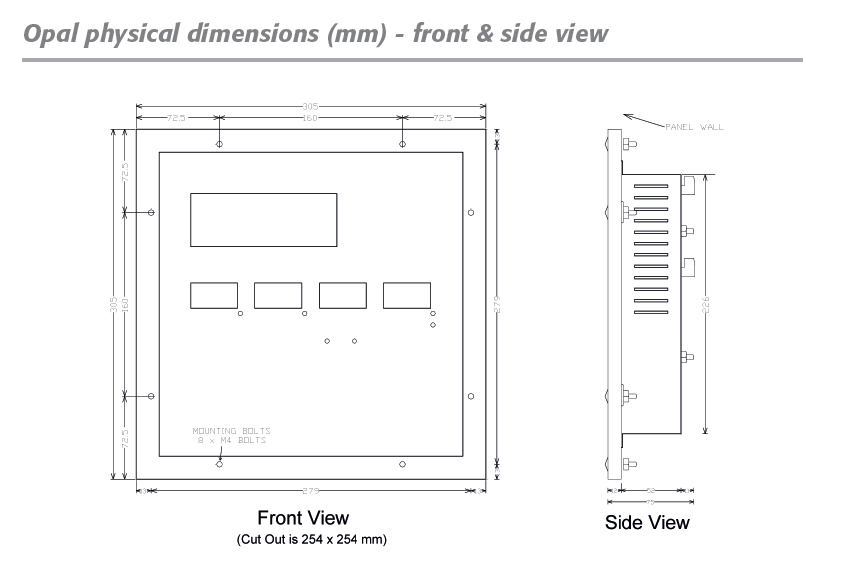

Technical Drawing

Data Sheet

  • Electrical overspeed protection function
  • Overspeed test function
  • Metering of essential generator parameters and engine speed
  • Engine monitoring, pressures, temperatures, etc.
  • Range of alarm functions and logic status
  • Temperature metering via temperature scanner module (optional)
  • Easy navigation of Si-TEC Xtend and Opal II parameters via keypad
  • Configurable via pcConfigure for commissioning and storing of settings

Applications

Mining
Oil & Gas
Standby Power Systems
Hospitals
