Actuator Positioner

Positioning module for controlling Heinzmann StG6/10/16/30/40/64/90 actuators with external speed control.

Leaflet Steam Turbine Controls

loading...

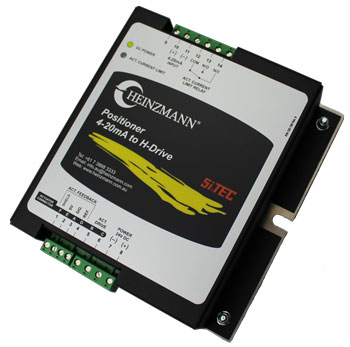

Actuator Positioner

Actuator Positioner 4-20mA to H-Drive

The Actuator positioner is used for steam turbines and diesel or gas engines

More information

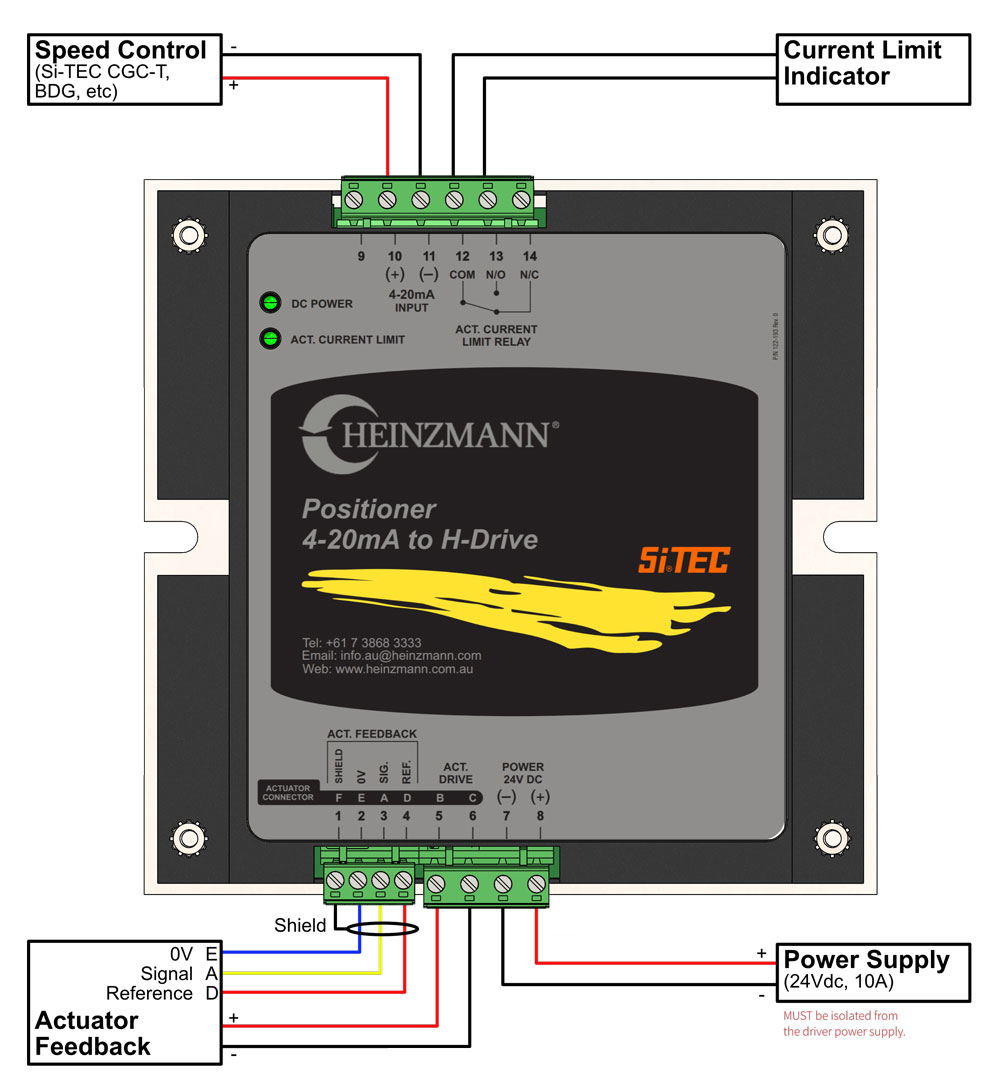

System Overview

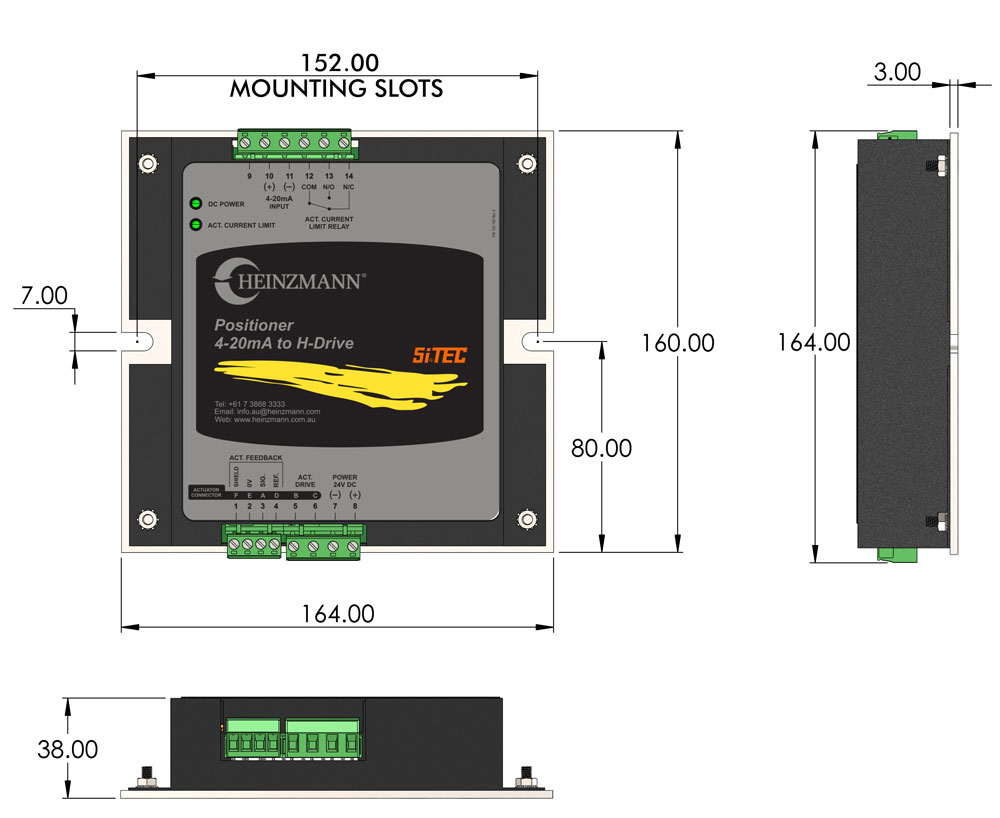

Technical Drawing

Data Sheet

  • 1 x 4 to 20mA (input signal must be isolated from the power supply)
  • H-Drive current output with position feedback (1.5 to 2.6Vdc)
  • Internal flush mounted with 2 x M7screws required

Applications

Petrochemical
Sugar Mills
Oil and Gas
Power Plants
Pumps
Fans
Shredders
Mills
Compressors
