Expanded remote digital I/O unit for Si-TEC Xtend controls via CAN bus, with configurable logic inputs and relay outputs for a wide range of functions.
Overview
PCU
Mini PCU
Analog Rio
Mini Rio

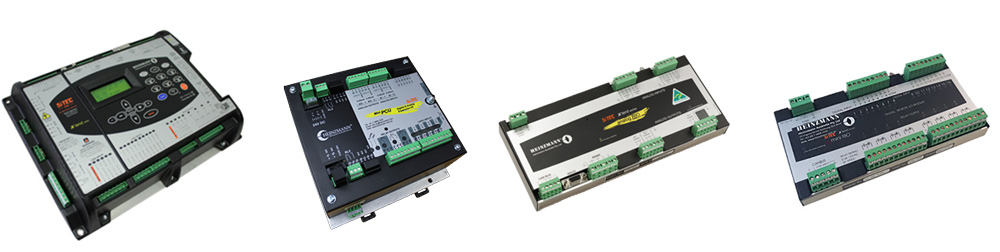

Si-TEC Range of Expandable I/O modules
The Si-TEC range of Genset and Steam Turbine Controls all have the option to expand their O/I, either digital or analog or both depending on the application requirements.
These expandable I/O modules connect to the Si-TEC controllers via our propriety CAN bus network and allow for easy set up and configuration.
PCU I/O Expansion Module
Expandable digital and analog I/O via CAN bus for use with the below mentioned products
- 16x digital inputs with LED status
- 8x relay outputs with LED status
- 4x analog inputs (isolated)
- 3x analog outputs (isolated
- 1x actuator output
Suitable for:
- Si-TEC³ & Si-TEC Xtend CGC controllers

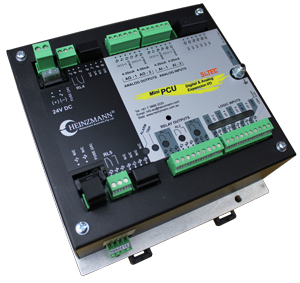

Mini PCU I/O Expansion Module
Expandable digital and analog I/O via CAN bus for use with the below mentioned products
- 8x digital inputs with LED status
- 5x relay outputs with LED status
- 2x analog inputs (isolated)
- 2x analog outputs (isolated
- Din rail enclosure for easy installation
Suitable for:
- Si-TEC³ CGC controllers
- Si-TEC Xtend CGC controllers
- Si-TEC BDG controllers

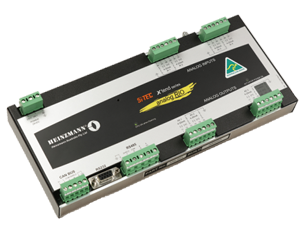

Analog Rio I/O Expansion Module
Expandable analog I/O via CAN bus for use with the below mentioned products
- 4x analog inputs (isolated)
- 4x analog outputs (isolated)
- Din rail enclosure for easy installation
Suitable for:
- Si-TEC³ CGC controllers
- Si-TEC³ GSM controllers
- Si-TEC Xtend CGC controllers
- Si-TEC Xtend GSM controllers
- Si-TEC Xtend ADG controllers
- Si-TEC BDG controllers

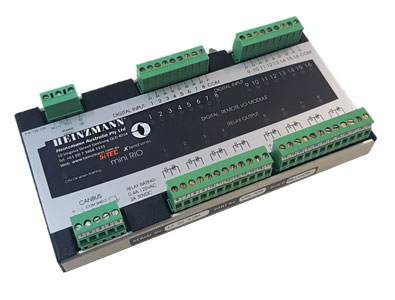

Mini Rio I/O Expansion Module
Remote digital I/O for use with Si-TEC Xtend modules via CAN bus.
- 16x digital inputs with LED status
- 8x relay outputs with LED status
- Din rail enclosure for easy installation
Suitable for:
- Si-TEC³ CGC controllers
- Si-TEC³ GSM controllers
- Si-TEC Xtend CGC controllers
- Si-TEC Xtend GSM controllers
- Si-TEC Xtend ADG controllers
- Si-TEC BDG controllers
